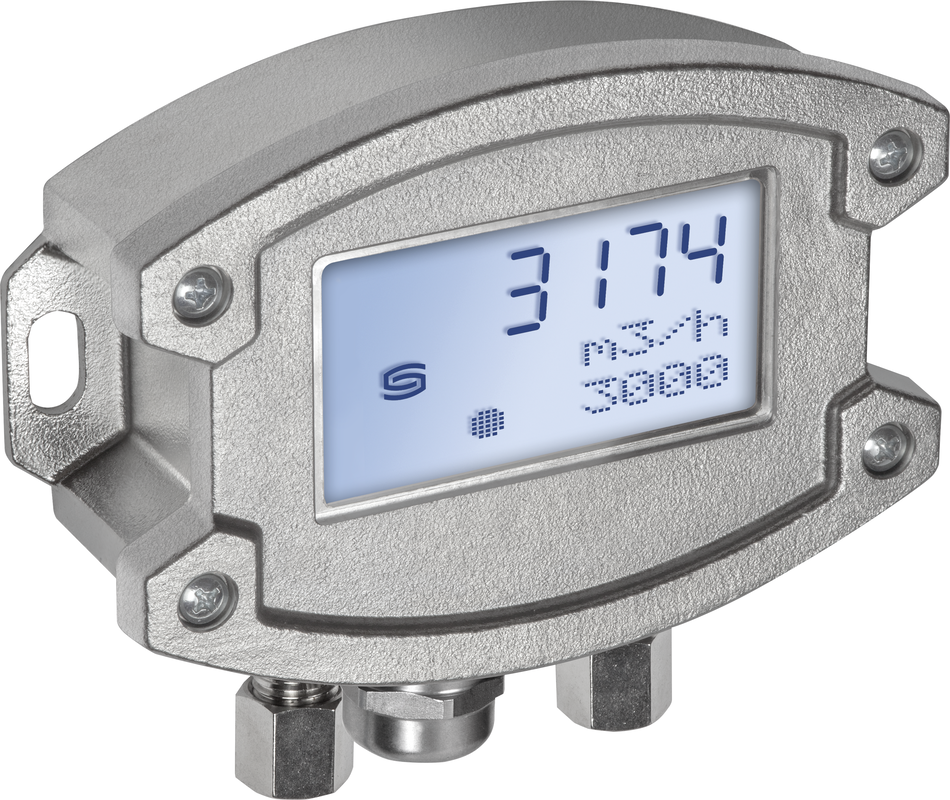

PREMASREG 7165-UW VA LCD

The electronic pressure sensor and switch PREMASREG® 716x - VA is equipped with measuring functions for volume flow, differential pressure, filter monitoring and liquid level detection based on pressure measurement in clean air.

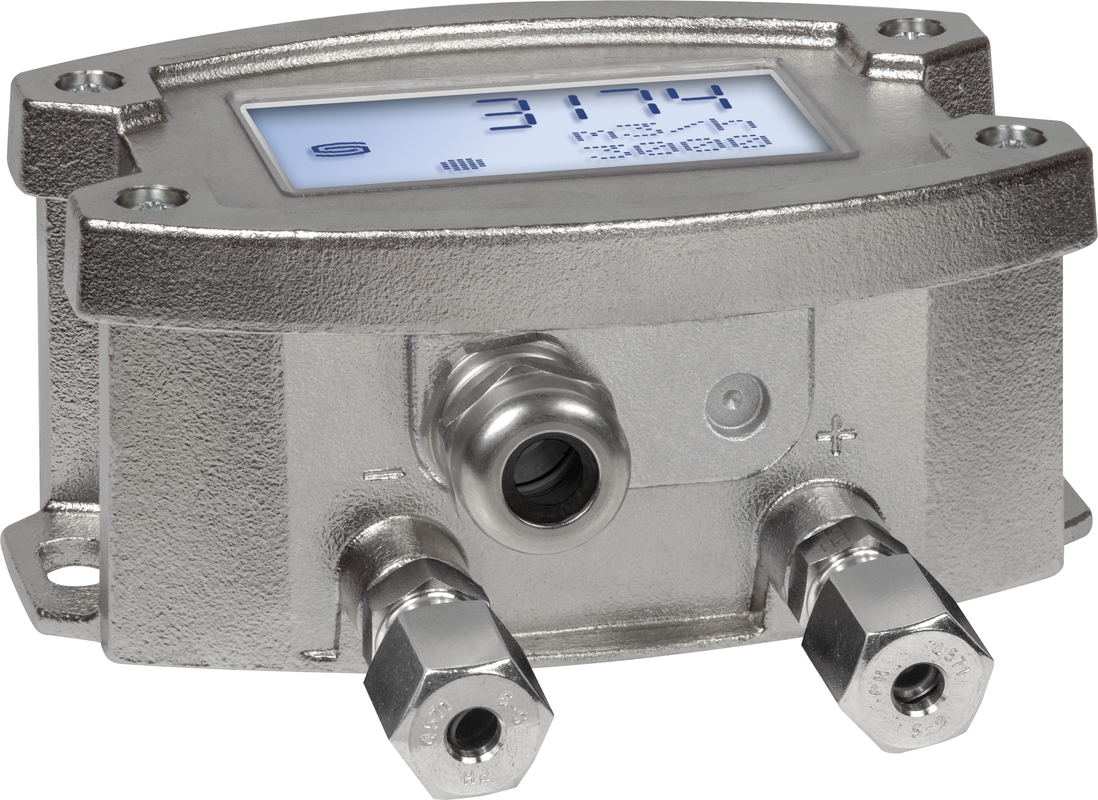

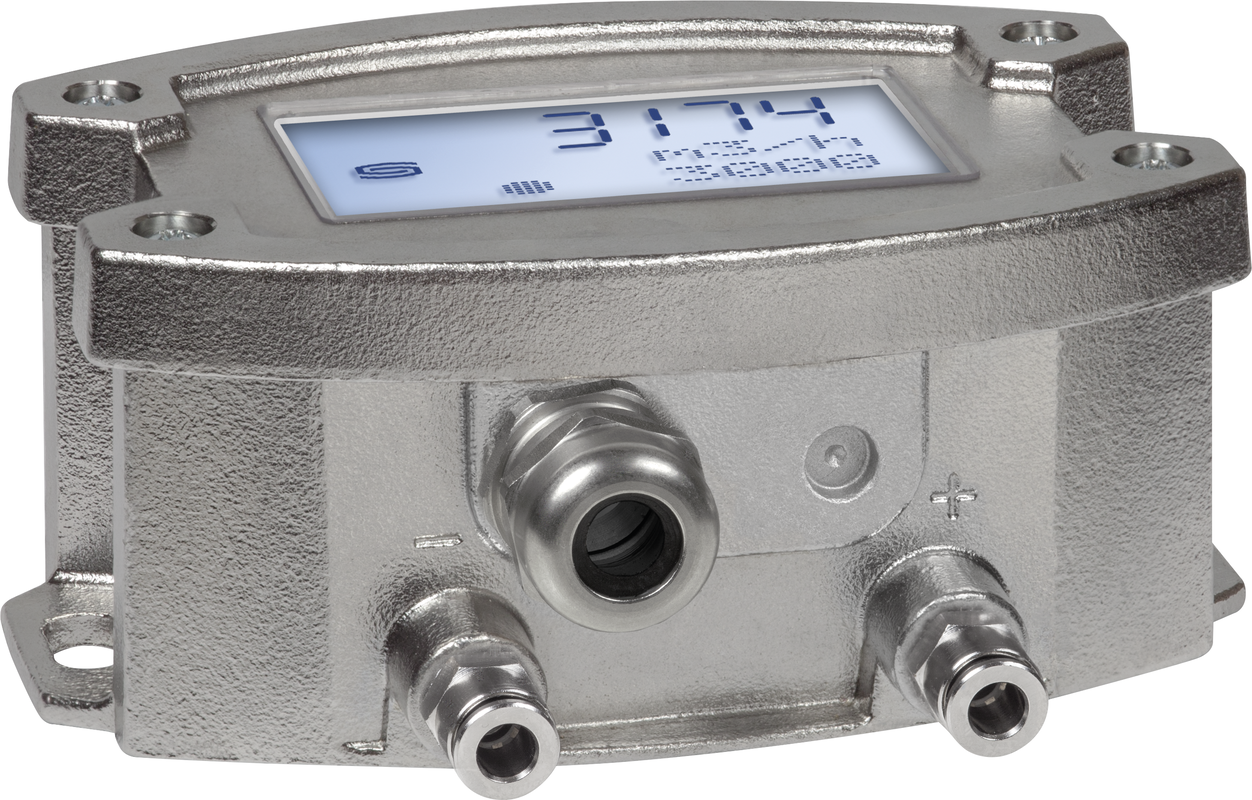

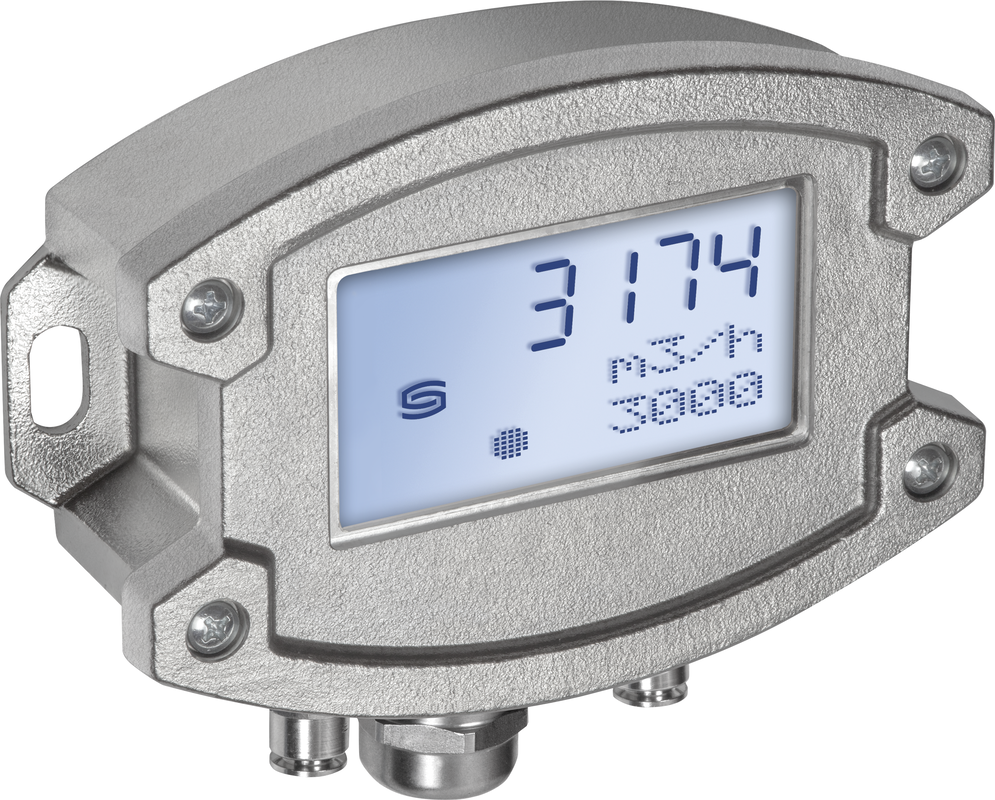

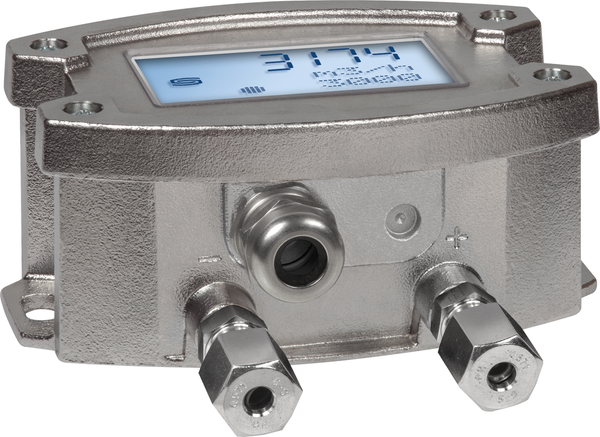

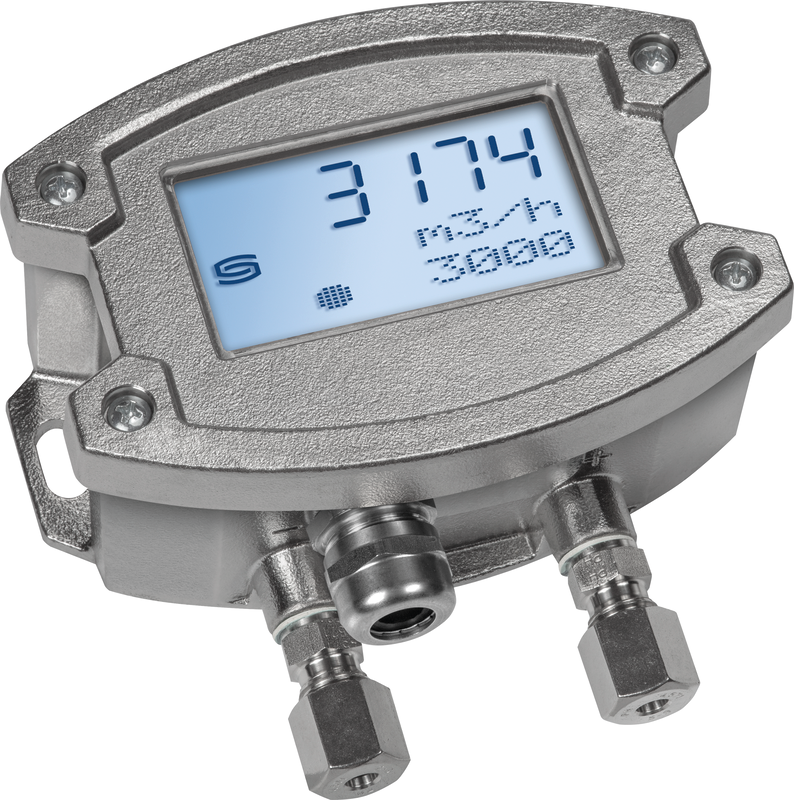

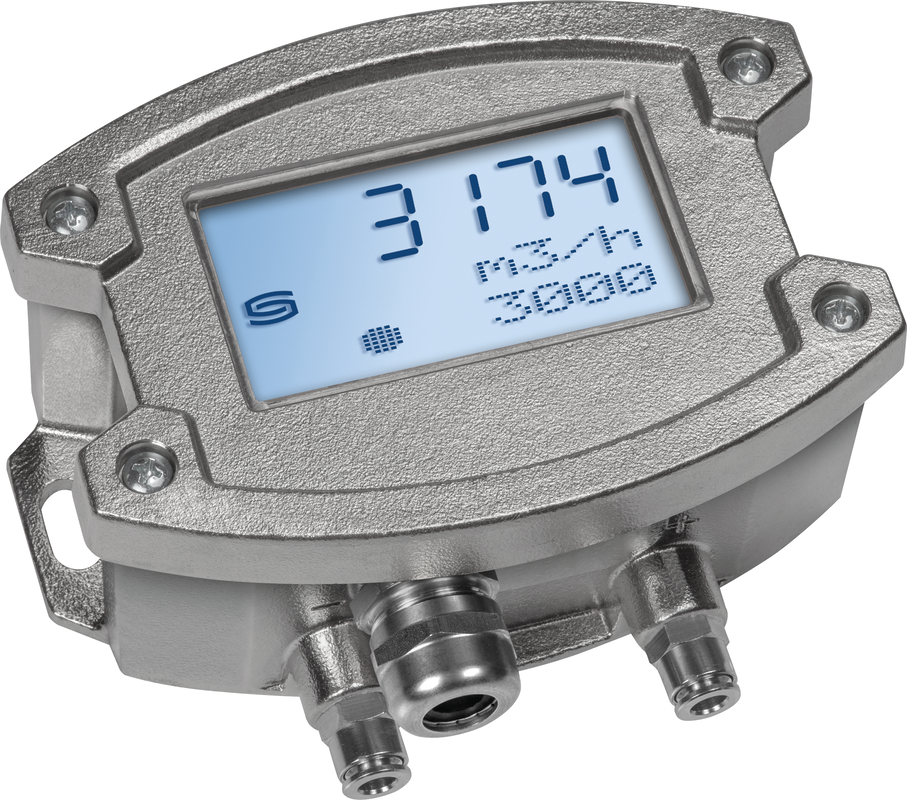

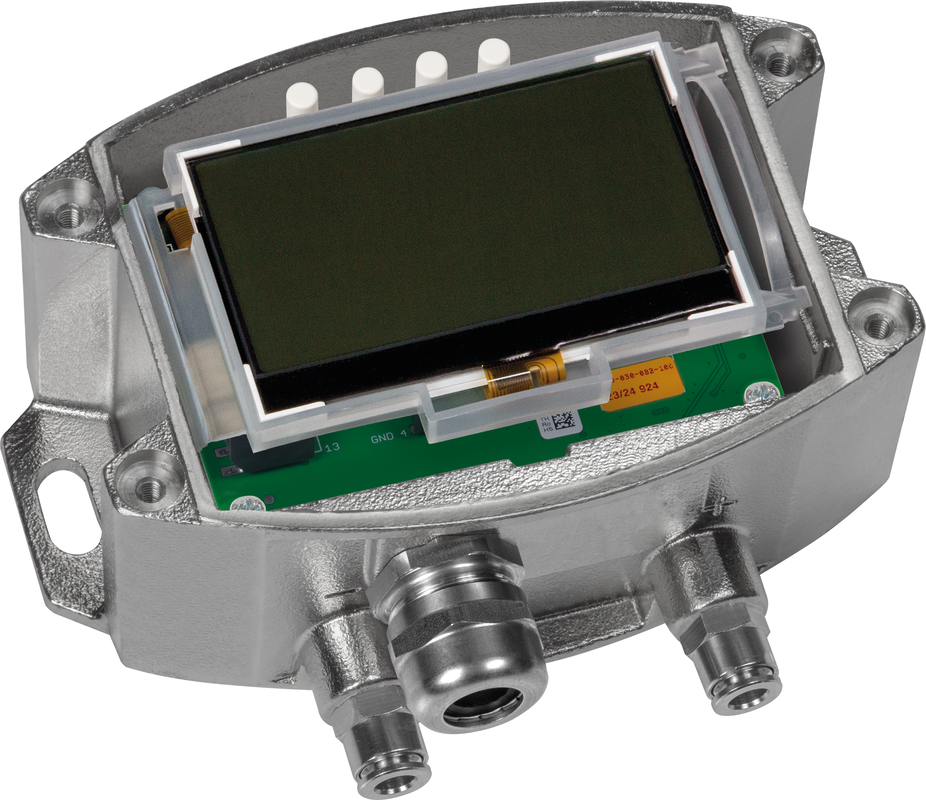

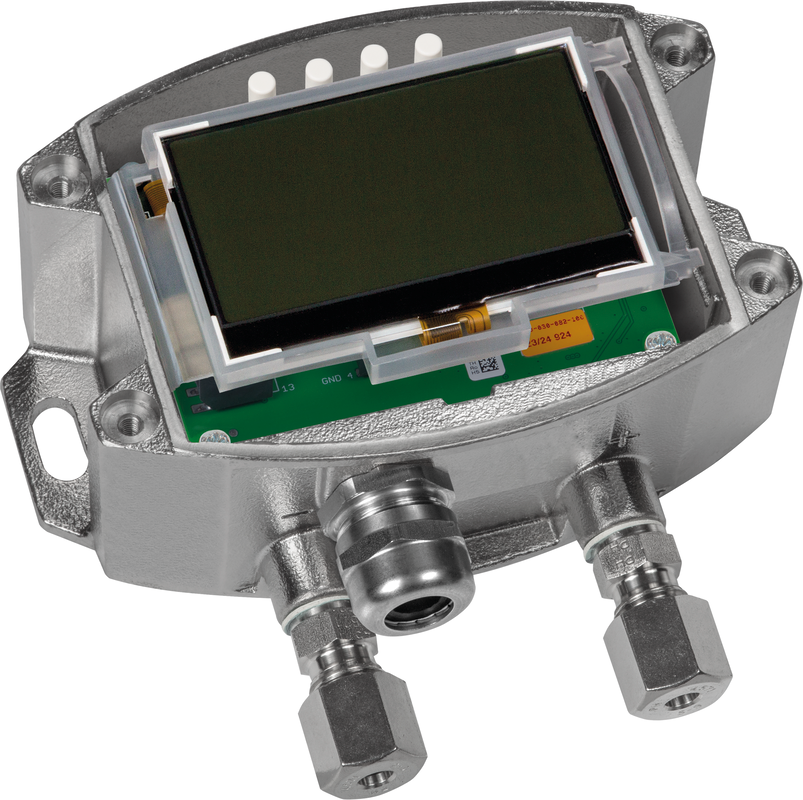

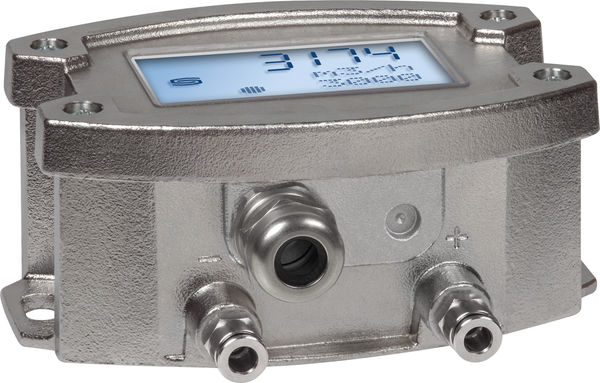

The devices with housing made of stainless steel V4Awith cable gland or M12 plug connector in accordance with DIN EN 61076-2-101 and pressure connection by means of a stainless steel quick plug-in connection (pipe fitting optional) contain a switching output, a continuous output and a backlit display for setting the switching point and displaying the actual values. The piezoresistive measuring element ensures high reliability and accuracy.
The pressure transmitter is used in clean room, medical and filter technology, in ventilation and air conditioning ducts, in spray booths and commercial kitchens, for filter monitoring and level measurement or for controlling frequency converters. Measuring media are air (non-condensing) or gaseous, non-flammable media.

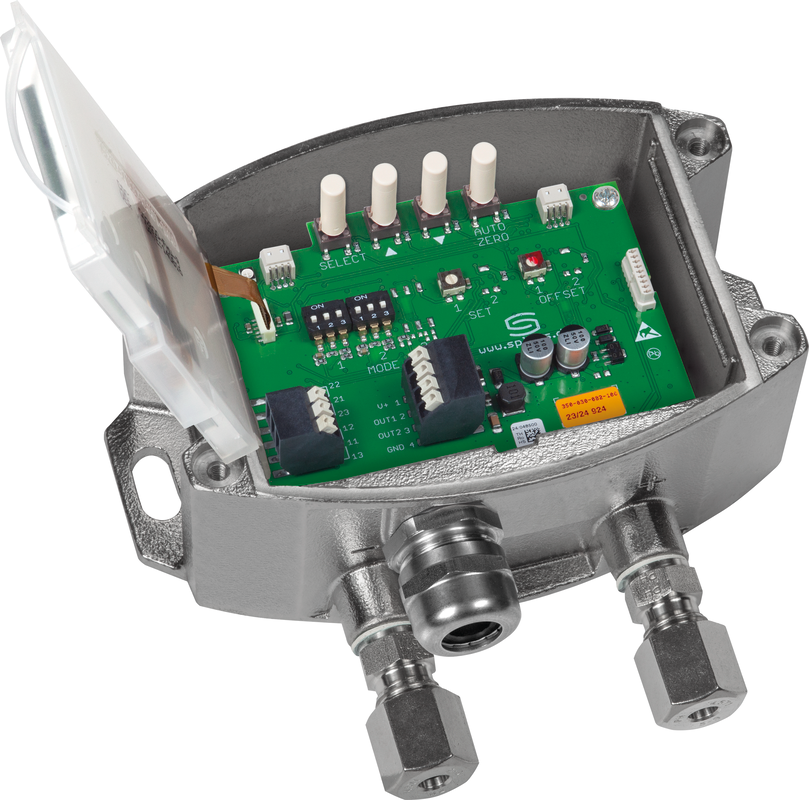

It has a manual zero point button and an offset potentiometer for end value correction. The parameters can be conveniently entered via the menu using three buttons on the display. The sensor is calibrated at the factory; fine adjustment by a specialist is possible depending on the environment.
