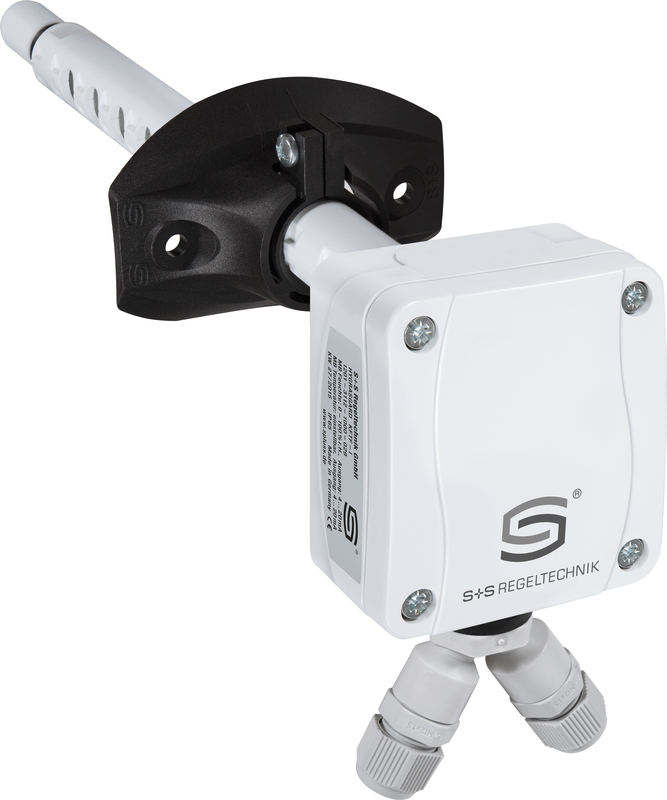

HYGRASGARD® KFTF-Modbus

Quality product for HVAC sector, accuracy ± 1.8 % or ± 2 %

Calibratable duct humidity and temperature sensor HYGRASGARD® KFTF - Modbus (± 3 % ) or KFTF - 20 - Modbus (± 2 %), with plastic sintered filter (optional metal sintered filter), with Modbus connection, terminal box housing made of impact-resistant plastic, housing cover with quick-locking screws, optionally with ⁄ without display.

The universal duct sensor is used to determine various humidity measurement technology parameters. The relative humidity and the temperature of the ambient air are measured. Various parameters are calculated internally from these measured variables. The following parameters can be queried via the Modbus: relative humidity [% r. H.], absolute humidity [g ⁄ m³], mixing ratio [g ⁄ kg], dew point temperature [°C], enthalpy [kJ ⁄ kg] (neglecting the atm. air pressure) and ambient temperature [°C].

It is used in non-aggressive, dust-free environments, in refrigeration, air conditioning and clean room technology, hotels, technical rooms, assembly and conference facilities. The transmitters are designed for the precise measurement of temperature and humidity. A digital, long-term stable sensor is used as the measuring element for humidity and temperature measurement. Fine adjustment by the user is possible. The sensor is suitable for ceiling and duct mounting or for device installation.
