PREMASREG® DS-106 A

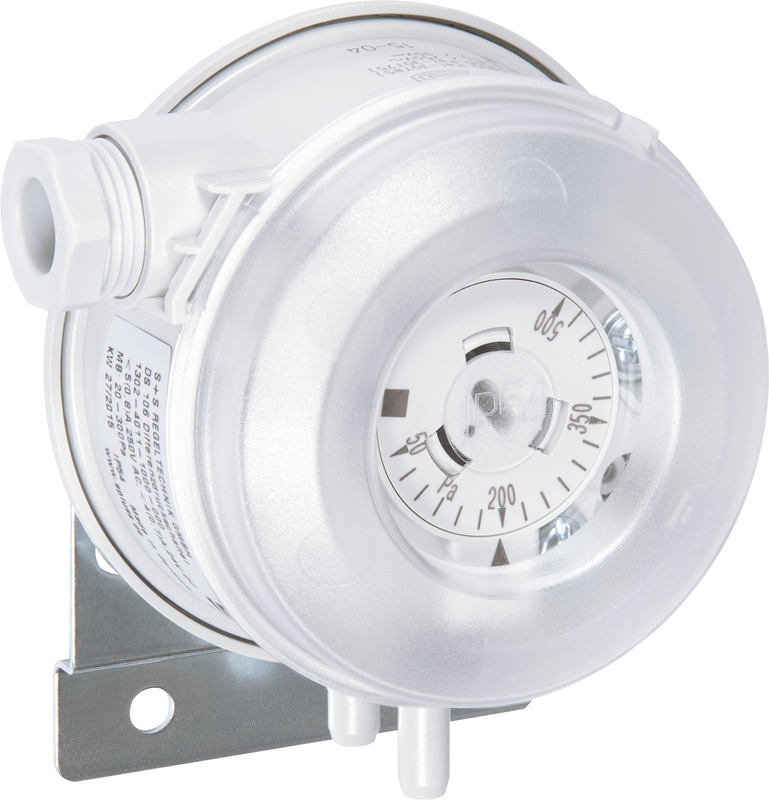

The mechanical differential pressure switch/differential pressure switch PREMASREG® DS 1 with metal bracket is suitable for monitoring overpressure, differential pressure and underpressure of clean air and gaseous, non-aggressive media in air ducts, supply or exhaust air devices.

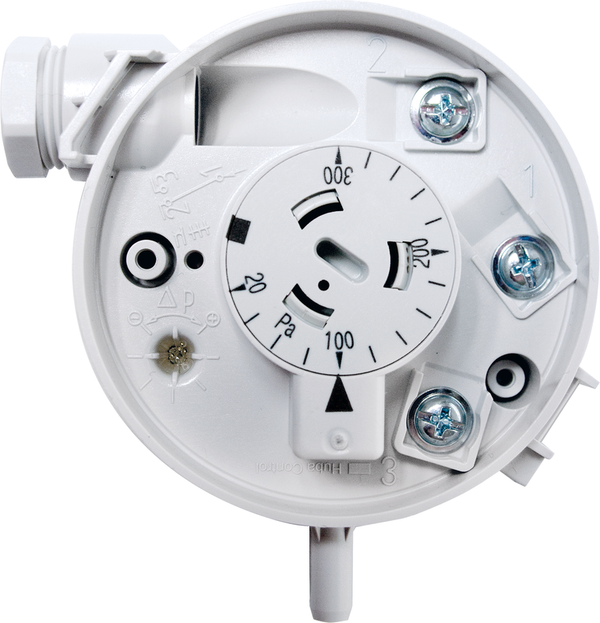

The mechanical differential pressure switch/differential pressure switch PREMASREG® DS-2 with plastic four-hole base is suitable for monitoring positive, differential and negative pressures of clean air, gaseous, non-aggressive media in air ducts, supply or exhaust air devices. It is used as a flow monitor, pressure differential monitor, pressure monitor for flow monitoring in electric heating registers, as well as for V-belt and filter monitoring, as a low air pressure safety device, for monitoring fans, air dampers or as a limit value controller. The switching point is set on the internal precision scale. The devices are calibrated at the factory.

The pressure transmitter is used as a flow monitor, pressure differential monitor, pressure monitor for monitoring the flow of electric heating registers and for monitoring V-belts and filters, as a low air pressure safety device, for monitoring fans, air dampers or as a limit value controller. The switching point is set on the internal precision scale.

The sensor is calibrated at the factory. The differential pressure switch DS 1 is supplied incl. connection set ASD-06 (2 m connection hose, two pressure connection nipples, screws).

The differential pressure switch DS-2 is supplied incl. connection set ASD-06 (2 m connection hose, two pressure connection nipples, screws).
