HYGRASGARD® TW-Modbus

Quality product for the HVAC sector, accuracy ± 2 %

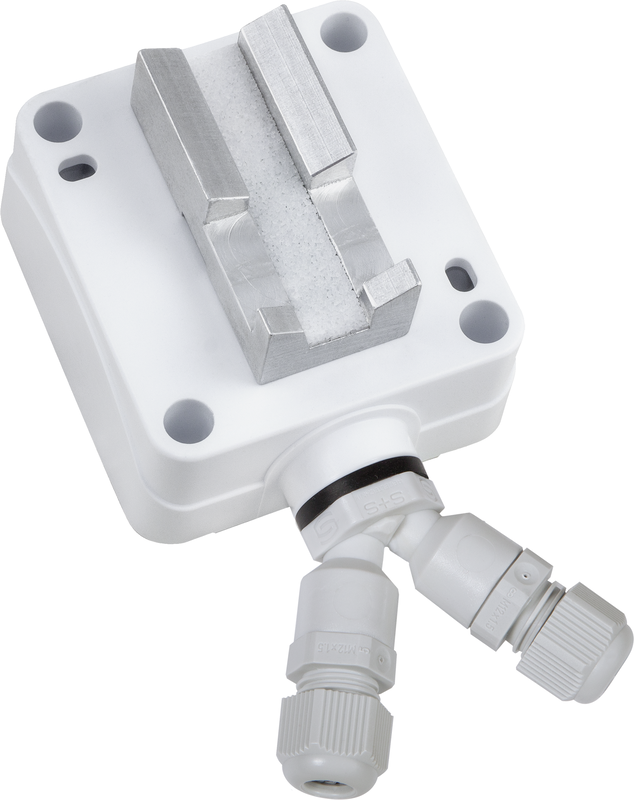

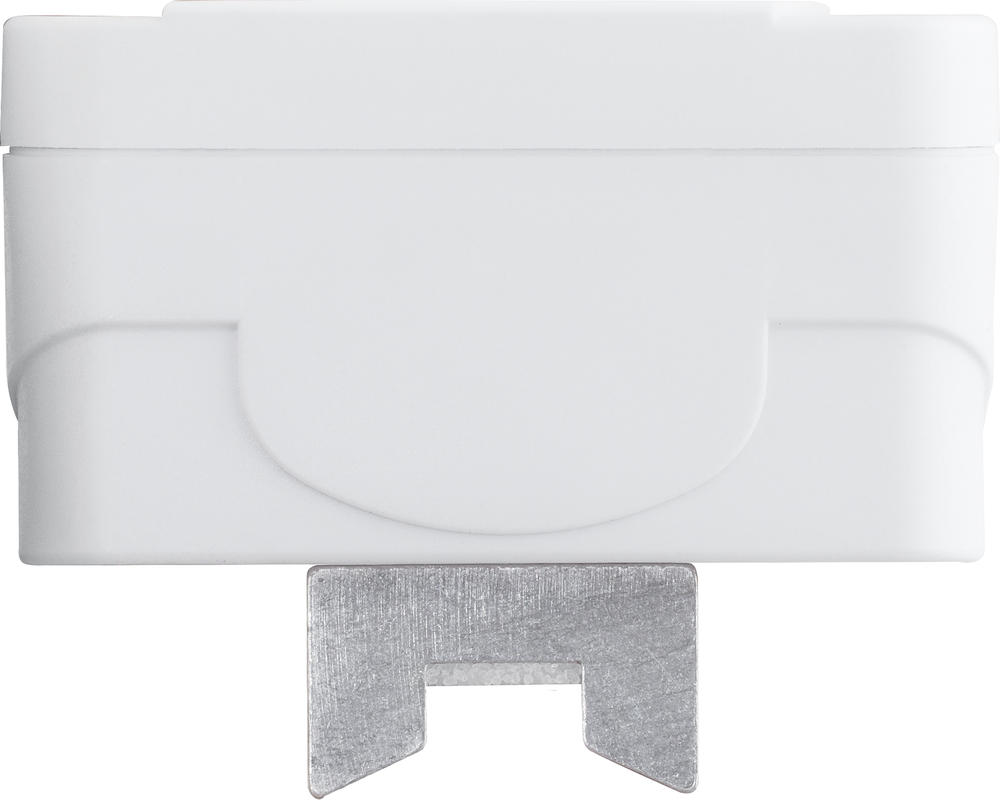

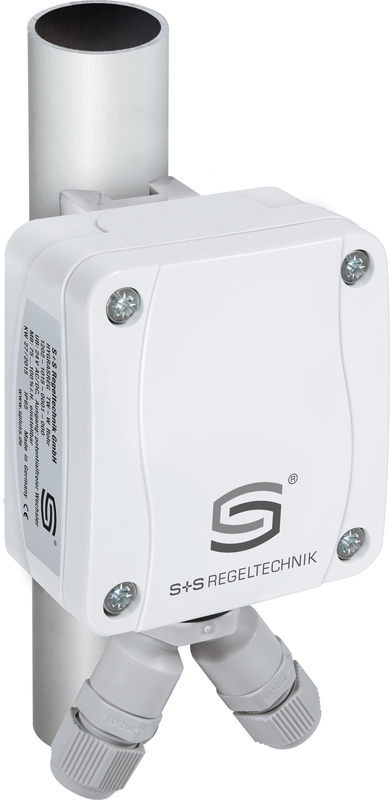

Calibratable dew point monitor HYGRASGARD® TW - Modbus incl. clamping band/with remote sensor head, with Modbus connection, terminal box housing made of impact-resistant plastic, housing cover with quick-locking screws, optionally with/without display.

The universal contact sensor is used to determine various humidity measurement technology parameters. The relative humidity and the temperature of the ambient air are measured. Various parameters are calculated internally from these measured variables. The following parameters can be queried via Modbus: relative humidity [% r. H.], absolute humidity [g/m³], mixing ratio [g/kg], dew point temperature [°C], enthalpy [kJ/kg] (disregarding the atmospheric air pressure) and ambient temperature [°C].
It is used in non-aggressive, dust-free environments, in refrigeration, air conditioning and clean room technology, hotels, technical rooms, assembly and conference facilities. The transmitters are designed for the precise measurement of temperature and humidity. A digital, long-term stable sensor is used as the measuring element for humidity and temperature. Fine adjustment by the user is possible. The sensor is suitable for ceiling and duct mounting or for device installation.
