Rymaskon® Room operating units - The perfect solution for intelligent individual room control

Back to blog

  • The RYMASKON® series room control units were developed to control temperature, fans, sun protection and lighting including dimming function. Whether office, doctor's office, gastronomy, hotel or private rooms - building automation with Rymaskon® is versatile and smart.

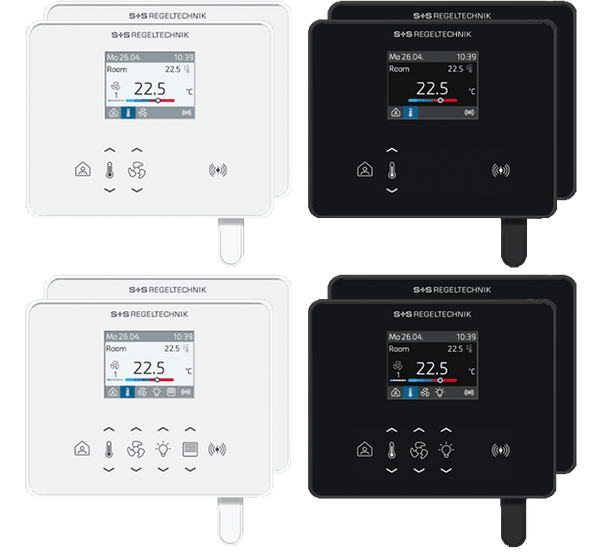

  • Thanks to the intelligent (wireless) modbus communication, the devices can also be seamlessly integrated into existing building control systems. Rymaskon® captivates with its high -quality appearance, elegant surfaces in white and black and a high -contrast color display.

  • Timeless design

    Elegant housing and glass front in black and white

  • Integrated environmental sensorism

    Enables energy -efficient space ventilation

  • Extensive configuration

    Room control units according to your needs

  • Intelligent building automation

    Thanks to fast modbus communication and many features

  • Touch keys / touch screen

    Intuitive and smart service, power -saving

  • Many standard languages

    For menu renewal (de, en, FR, ES, IT, RU, more on request)

  • Fast installation

    Thanks to simple assembly and immediate commissioning

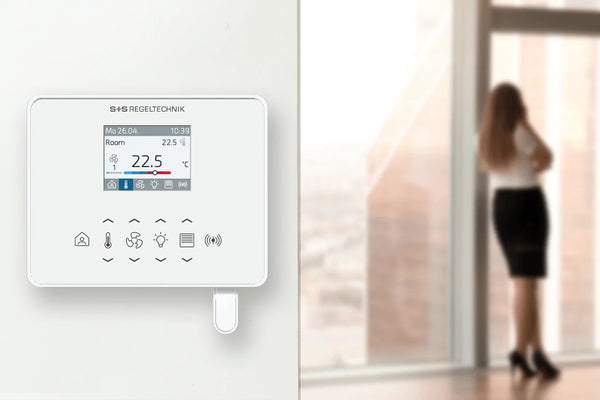

What is Rymaskon®?

The expanded product family of the modern rymas concrete regulator enables you to monitor your indoor climate in up to 5 zones:

  1. Spatial presence
  2. temperature
  3. fan
  4. lighting
  5. Sun protection



The control is rounded off by the detection of open windows and programmable provisions. In this way, buildings can be operated energy -optimized and environmentally friendly.

Why do I need a single room control?

Would you like to read the temperature in your office or hotel room and adjust if necessary? Would you like to be able to influence the ventilation and shading system in your room depending on daylight, weather, outside and inside temperature as well as air quality as well as air quality?
Then they combine all of these values ​​and functions in a control unit to directly influence the actual values ​​in your room - either through communication between your room control unit and the building control technique or with self -sufficient devices.
An intelligent individual room control can thus make a significant contribution to the well -being and health of people and contribute to the energy -saving operation of their premises.

How do I integrate my operating device in the room?

This is not a problem with rymaskon! Our operating devices impress with their high -quality optics, noble surfaces in white and black and a high -contrast color display. The graphic design with international symbols and a variety of languages ​​offers the perfect solution for all visible areas in the building. Intuitive operation is possible using touch keys (Rymaskon 1000) or touchscreen (Rymaskon 2000/3000).
Thanks to the comfortable surface assembly, the operating device can be positioned freely in the room and supplied with electricity. There is also the possibility to assemble it over a flush -mounted box including the back -up power supply.

With RYMASKON® you choose the perfect solution for individual and smart space control.

How do I integrate RyMaskon into building automation?

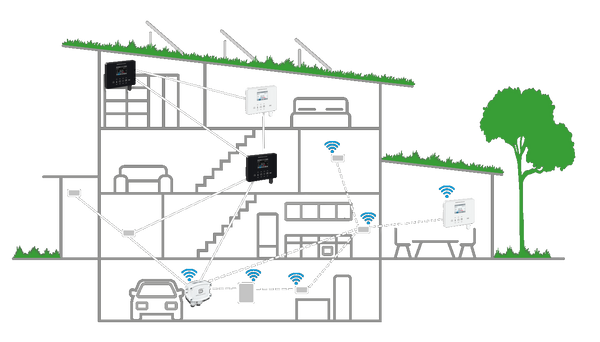

Thanks to the intelligent modbus communication, the devices can be easily networked or seamlessly integrated into existing building control systems. The room control units of the GLT provide the setpoints either via the conventionally wired modbus or via the wireless, radio -based wireless modbus.

RyMas conversation has sensors for measuring temperature, moist and air quality to check the current state of the room. The room control units control heating, cooling, ventilation, shading and lighting via modbus communication with the GLT.

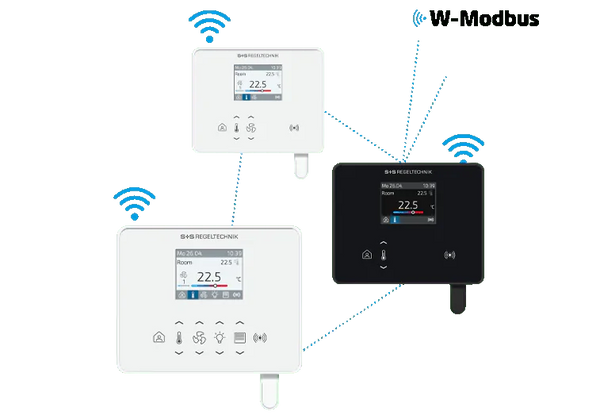

Is there the possibility of wireless communication?

Thanks to the latest W modbus technology, RyMas concrete devices can also be wirelessly integrated into the building automation. Likewise, the expansion of existing networks with W modbus is not a problem-up to 100 devices can be assigned to a W modbus gateway in the mesh. The radio range is up to 500m - even bridging critical elements such as fire protection doors is easy. Thanks to the simple installation and immediate commissioning, you also save time and money.

Read everything you need to know about W-Modbus here.
